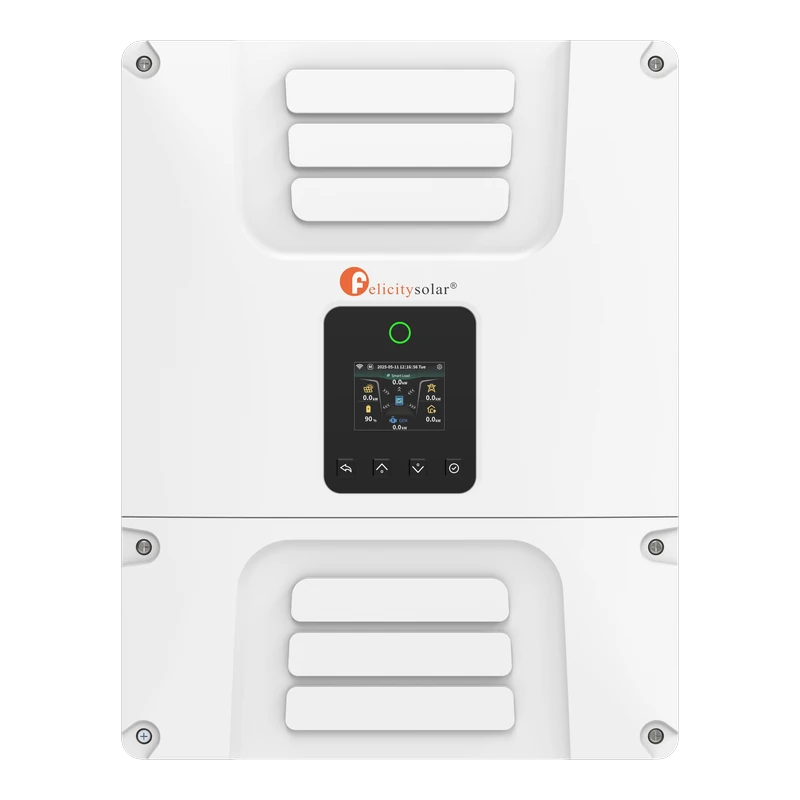

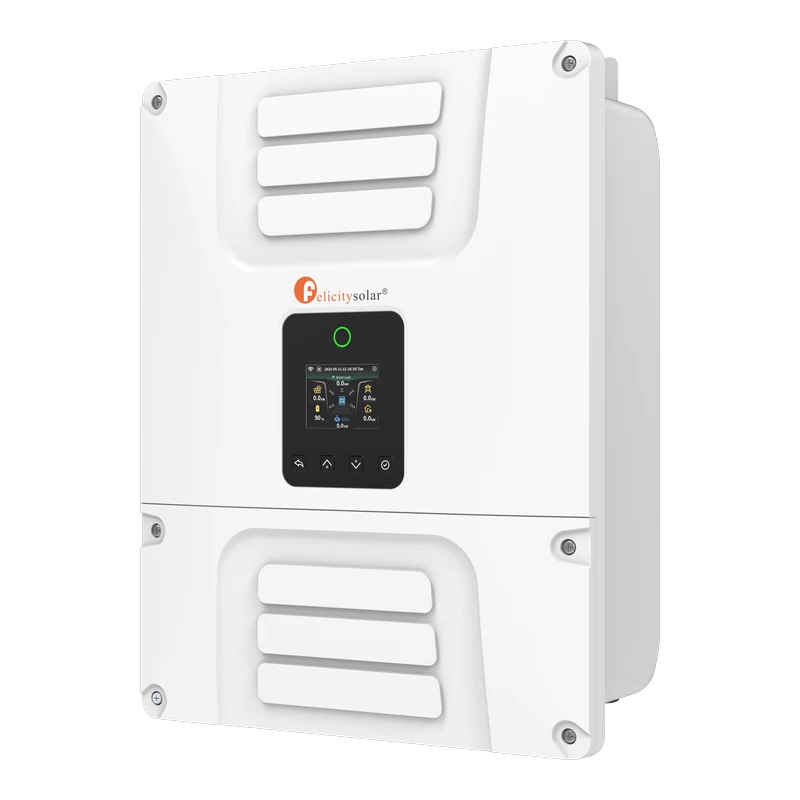

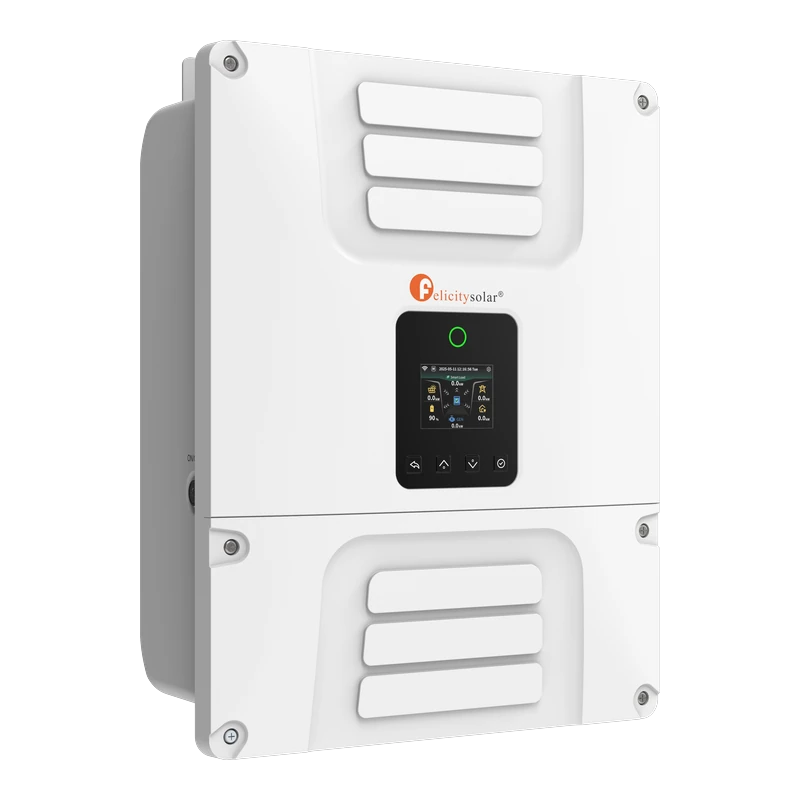

Off-grid Inverter
IVDM4224P1G3
4.2kW | Single Phase | LV
Supports self-consumption operation
Auto restart while AC is recovering
Programmable multiple operation modes: on-grid, off-grid, and UPS
Configurable battery charging current via LCD settings based on application needs
Compatible with grid power sources
Overload, over-temperature, and short-circuit protection
Built-in limit function to prevent excess power from feeding back to the grid
Supports remote monitoring and built-in MPPT tracker
Specifications
Detail Specifications of IVDM4224P1G3
| Model | IVDM4224P1G3 | ||||||
|---|---|---|---|---|---|---|---|
| Battery Type | Lead-acid or Lithium-ion | ||||||
| Battery Voltage Range (V) | 20~30 | ||||||
| Charging Strategy for Li-Ion Battery | Self-adaptation to BMS | ||||||
| Max. PV access power(W) | 10000 | ||||||
| Max. PV Input Power(W) | 8000 | ||||||
| No.of MPP Trackers | 1 | ||||||
| AC Output Type | L+N+PE | ||||||
| Communication Interface | RS485, CAN | ||||||
| Ingress Protection | IP6X | ||||||
Superior System Expansion Capability
Flexible configuration to meet different capacity requirements of IVDM4224P1G3
4.2kW
Power Range
6 units
Parallel operation support: up to 6 units (Same Model)
What is
IVDM4224P1G3
IVDM4224P1G3
This multi-functional inverter integrates an inverter, 1solar charger, and battery charger, providing uninterruptible power supply in a compact design. The LCD display allows users to configure and operate key functions easily, including battery charging, AC/solar charging, and input voltage settings for various applications.
View More ▼
Add Your Heading Text Here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Multiple Bracket Options
Adapt to different installation scenarios with flexible configuration for IVDM4224P1G3

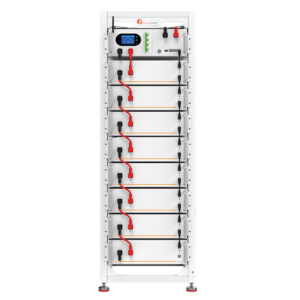

9-Layer Bracket
Medium capacity configuration with high cost performance

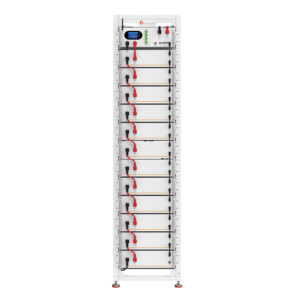

13-Layer Bracket
Medium capacity configuration with high cost performance

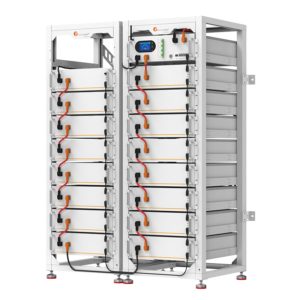

16-Layer Bracket
Medium capacity configuration with high cost performance
Application Scenarios
IVDM4224P1G3 is perfectly suited for various high-demand energy storage scenarios
Factory
Store
Warehouse
Villa
School
Resident
Hospital
Download
Click to Download
