LiFePO4

FLB24230WG1

5.85kWh | 25.6V | LV

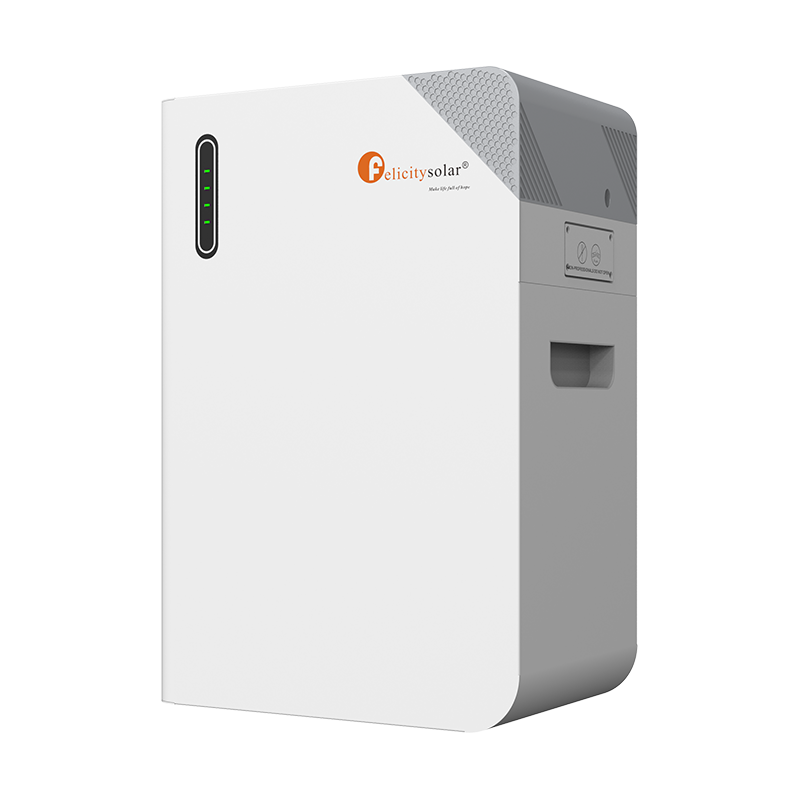

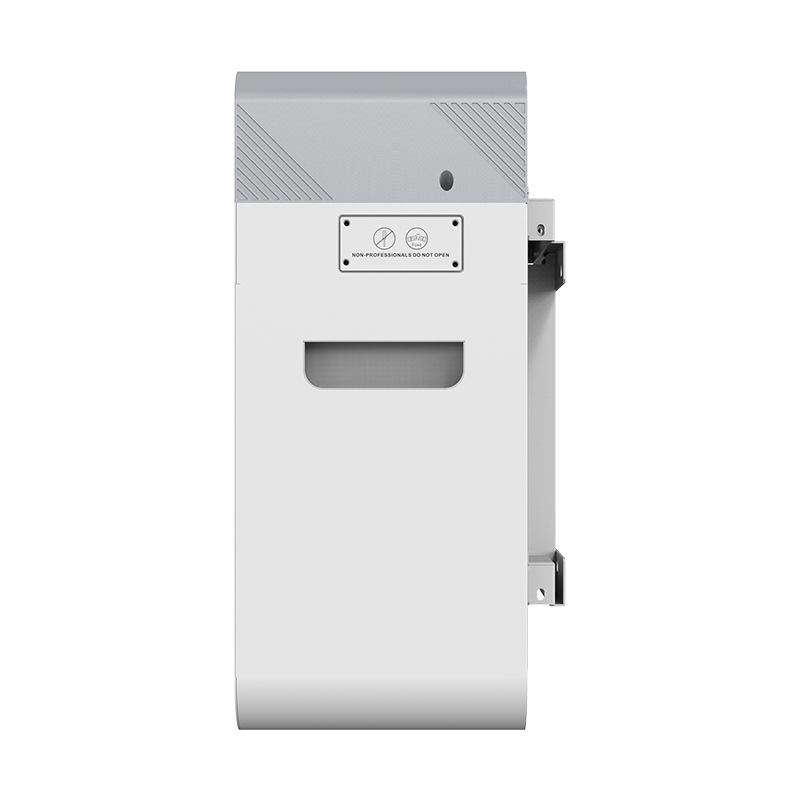

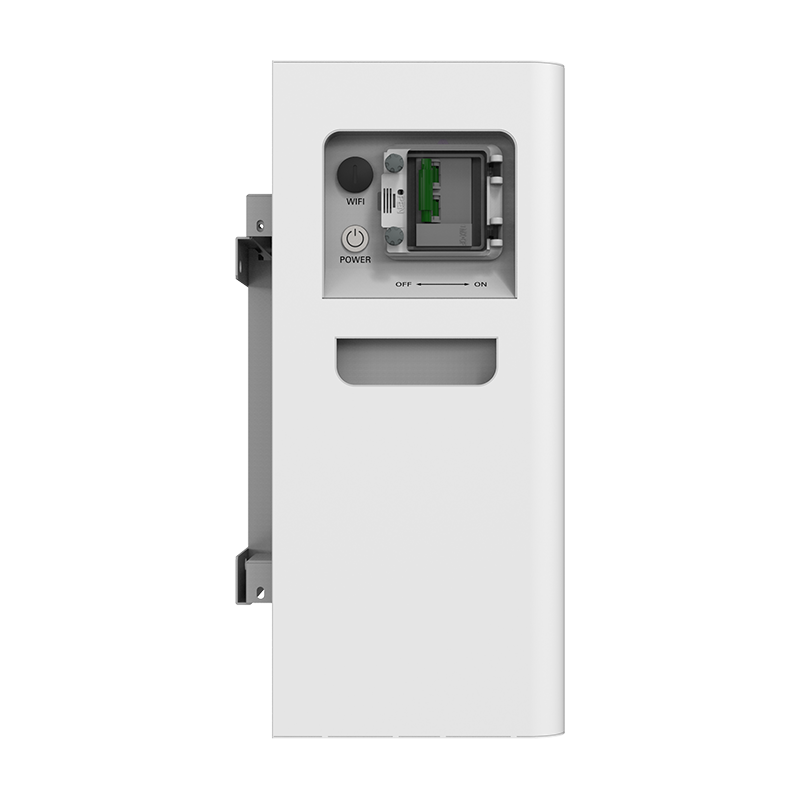

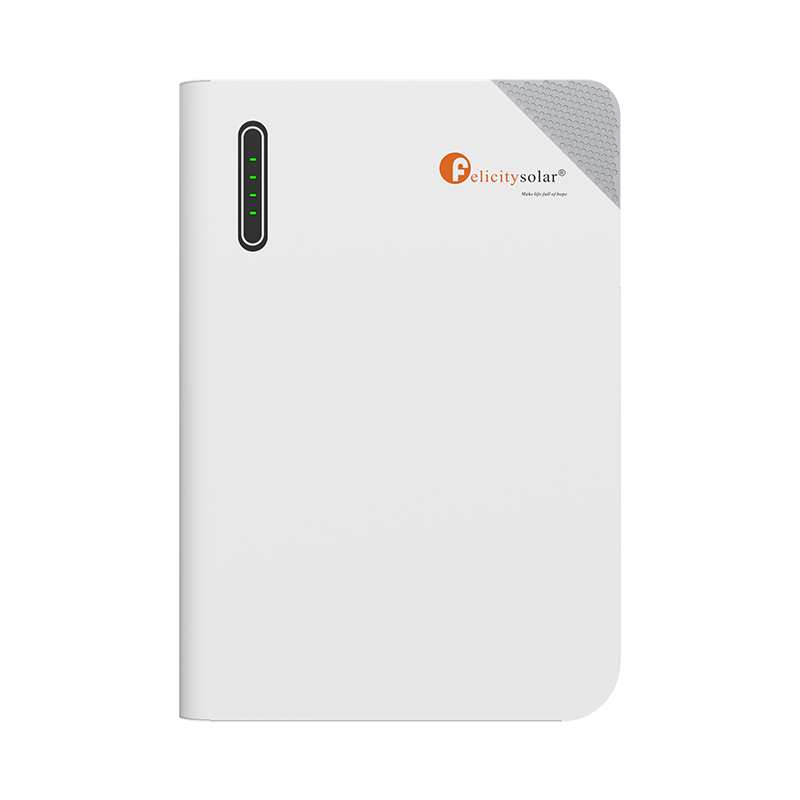

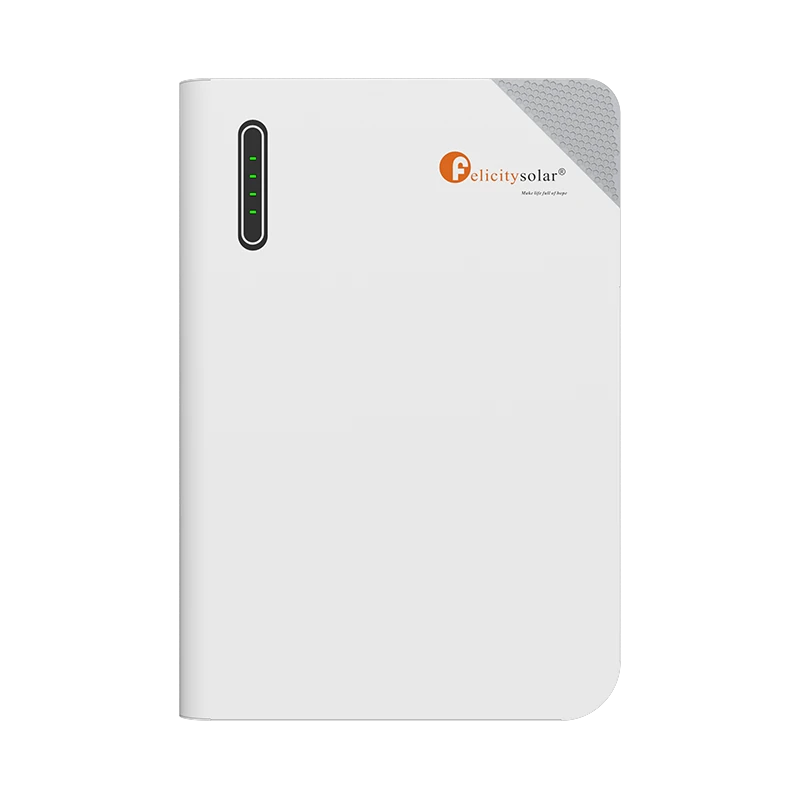

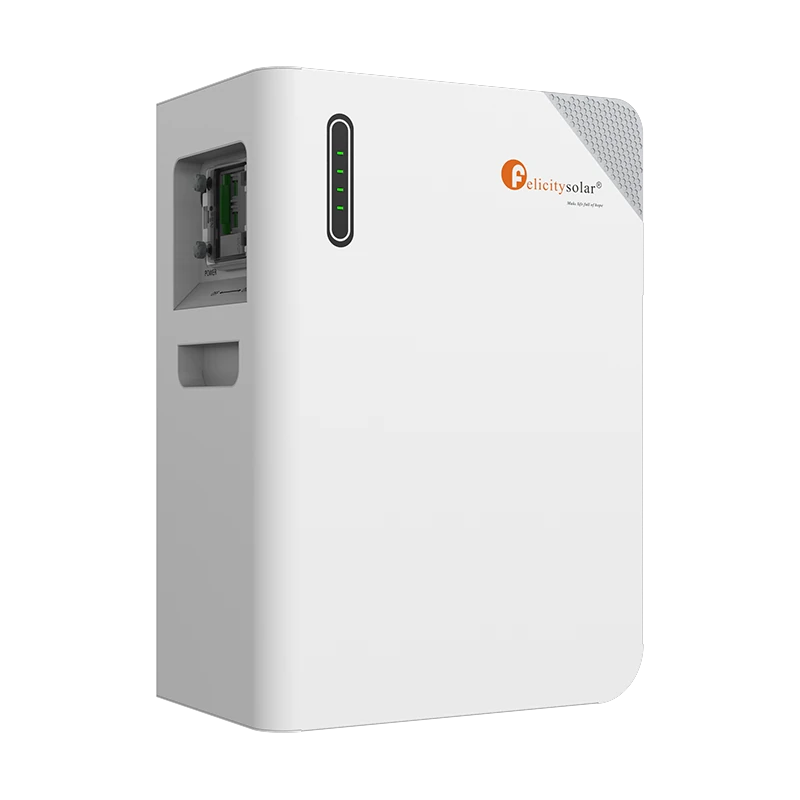

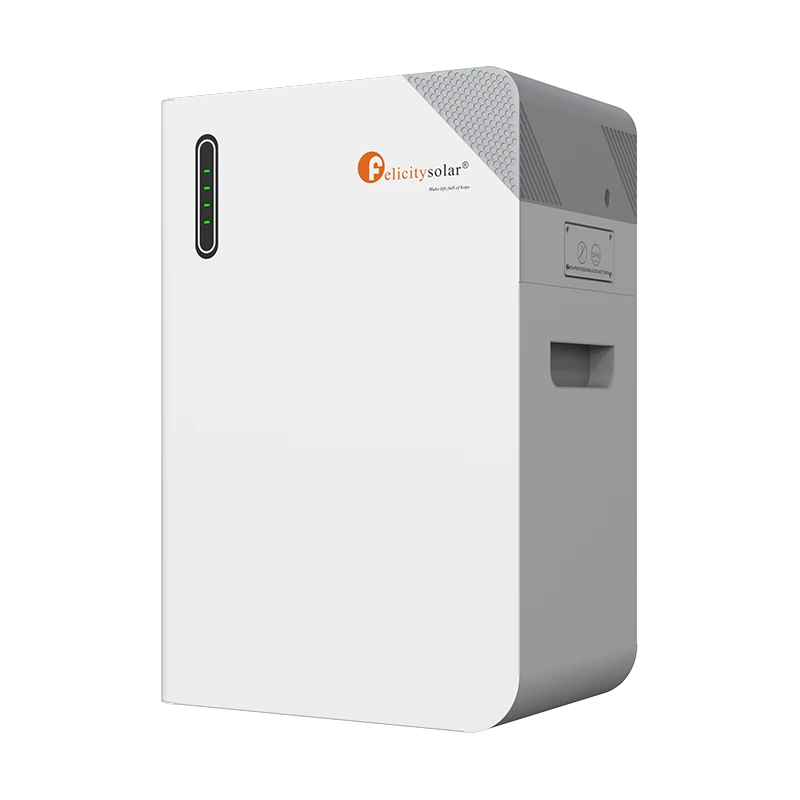

FLB24230WG1 gallery

What Sets It Apart.

High-capacity, safe, and scalable home energy storage.

5.85kWh Nominal Energy

Single-unit energy for reliable backup.

High Charge/Discharge Current

100A recommended, 150A max continuous.

6000 Cycle Lifespan

Long-lasting performance with 95% DOD.

IP65 Outdoor Protection

Suitable for outdoor installation.

Multiple Protection Systems

Smart BMS, breaker, and fuse.

Connected Battery Monitoring and Communication

Built-in WiFi, Bluetooth, CAN, and RS485 support remote monitoring, battery data access, and inverter communication. The Fsolar APP enables plant creation and device management from anywhere.

Flexible Installation Options

Wall-mounted or floor-mounted.

High Scalability

Up to 32 units in parallel.

Replaceable External Fuse

Easy replacement without opening the case.

Specifications

Detail Specifications of FLB24230WG1
Model FLB24230WG1
Battery Type LiFePO4
Nominal Energy 5.85kWh
Nominal Capacity 230Ah
Nominal Voltage 25.6V
Operating Voltage 22.4~28.8V
Recommend Charge/Discharge Current 100A
Max. Continuous Charge/Discharge Current 150A
Depth of Discharge (DOD) ≥95%

Flexible Capacity and System Expansion

FLB24230WG1 supports parallel connection of up to 32 units to form a high-capacity multi-module energy storage system.

5.85kWh

Single-unit rated energy capacity.

187.2kWh

Maximum system energy with 32 parallel units.

Overview:
FLB24230WG1

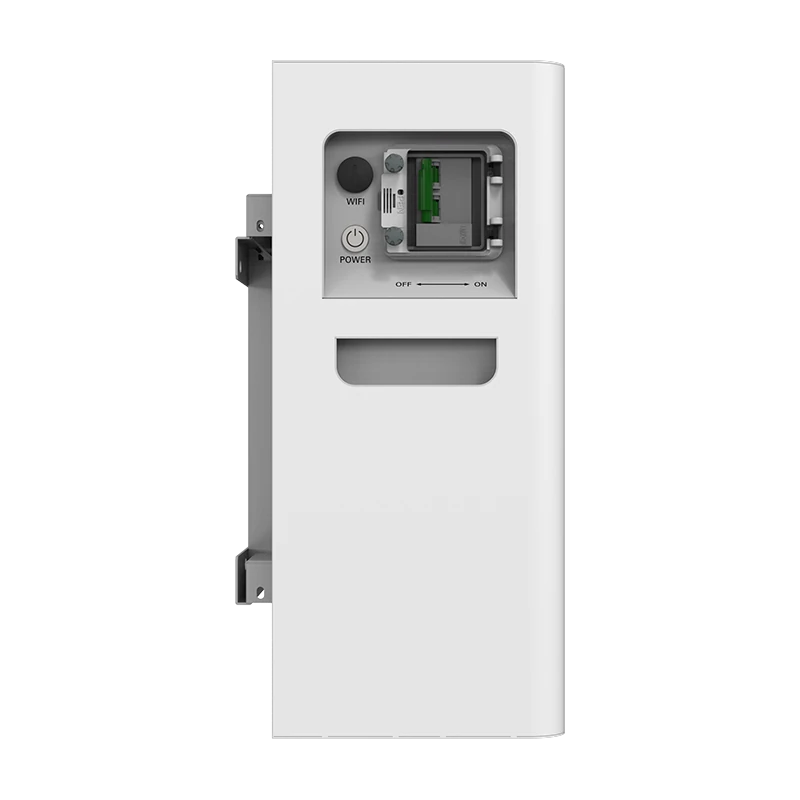

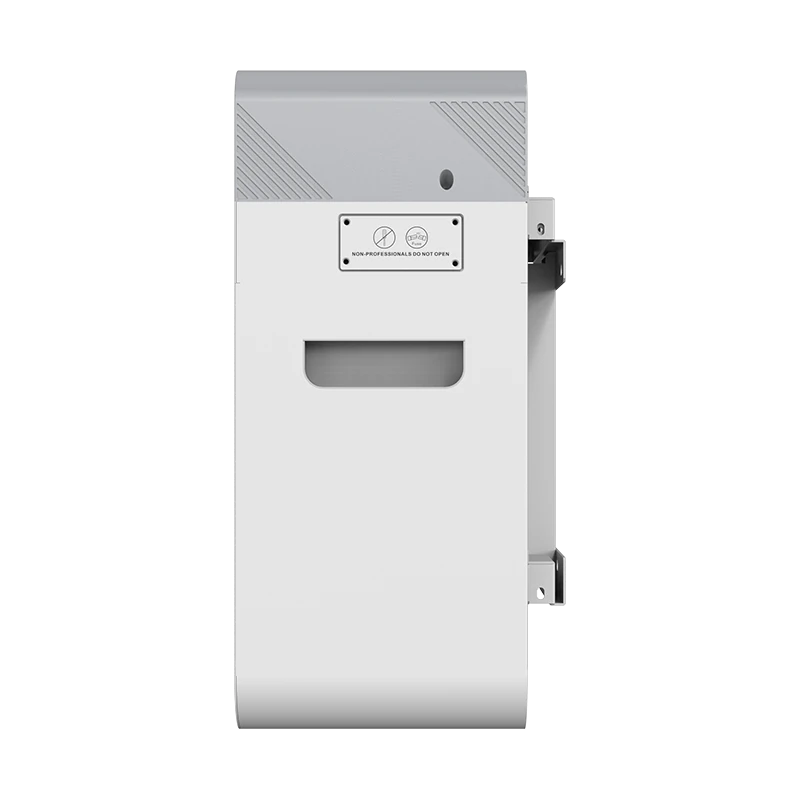

FLB24230WG1 gallery

Overview

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Multiple Bracket Options

Adapt to different installation scenarios with flexible configuration for FLB24230WG1

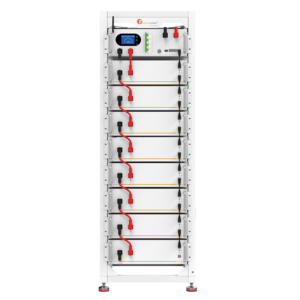

Flh48100ug2 (1)

9-Layer Bracket

Medium capacity configuration with high cost performance

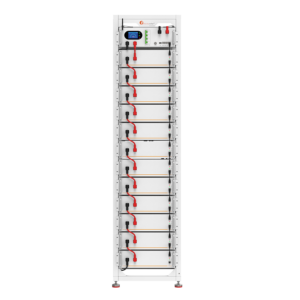

Flh48100ug2 (4)

13-Layer Bracket

Medium capacity configuration with high cost performance

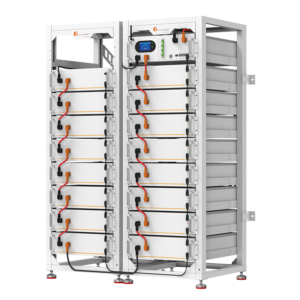

Flh48100ug2 1+16 (2)

16-Layer Bracket

Medium capacity configuration with high cost performance

Application Scenarios

FLB24230WG1 supports reliable energy storage across suitable residential applications.
Factory 400px

Factory

Store 400px

Store

Warehouse 400px

Warehouse

Villa 400px

Villa

School 400px

School

Resident 400px

Resident

Hospital 400px

Hospital

Download

Click to Download
